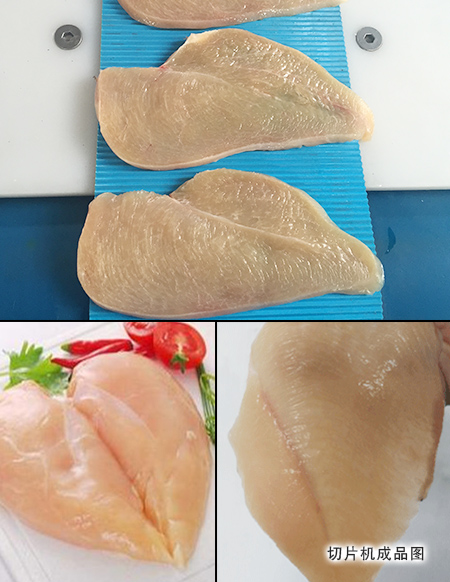

It can cut a piece of meat horizontally. It is suitable for slicing and processing of fresh raw materials such as pig, beef and other livestock meat, poultry meat and so on. Chicken breast of butterfly heart shape can be cut and processed.
Features of equipment:
The accurate cutting thickness can be up to 3mm, the multi-layer slicing is high in efficiency and can be up to 5 layers;
The thickness of the cutting product can be adjusted by replacing the tool holder; Chicken breast of butterfly heart shape can be cut and processed by replacing cutter;
The floating net belt design is suitable for different thickness of meat block, and can be designed into multiple layers of different thickness;
With dual channel operation, the output can reach 120 blocks /min;
Imported washboard belt of high service life is used;
It conforms to CE standard with SIEMENS electric parts and protective device;
Made of stainless steel and engineering plastics, it is easy to clean and in line with HACCP requirements;
The operation is convenient, and the maintenance cost is low.
Advantages of equipment:
The accuracy of cutting thickness is incomparable;
It can reduce the number of manual cutting, reduce labor costs, and achieve high efficiency;
It can be connected to slitting machine to produce the strip products of the same size.
|
Net belt width |
3-15m/min |
|
Cutting thickness |
Min:3mm;Max:50mm |
|
Cutting speed |
120 blocks/ min |
|
Product width |
140mm |
|
Input/output height |
1050±50mm |
|
Net belt width |
2×160mm |
|
Power |
1.65KW |
|
Overall dimension |
2100×1300×1200mm |
|
Net belt width |
3-15m/min |
|
Cutting thickness |
Min:3mm;Max:50mm |
|
Cutting speed |
120 blocks/ min |
|
Product width |
140mm |
|
Input/output height |
1050±50mm |
|
Net belt width |
2×160mm |
|
Power |
1.65KW |
|
Overall dimension |
2100×1300×1200mm |
